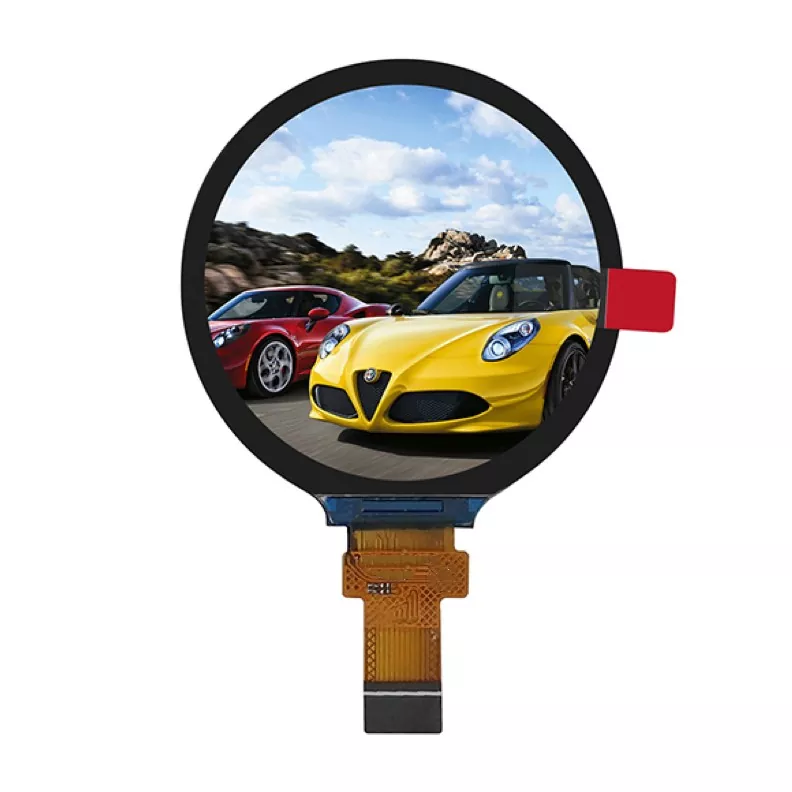

1,6 colio 400x400 apvalus IPS TFT modulis

„VXT016VCSA-01“ yra vienas iš Kinijos gamyklos „Victronix“ apvalaus IPS TFT modulio. Kaip profesionalus gamyba, mes norėtume pateikti aukštos kokybės 1,6 colio 400x400 apvalų IPS TFT modulį.

Modelis:VXT016VCSA-01

Siųsti užklausą PDF parsisiųsti

Prekės aprašymas

This VXT016VCSA-01 applies to 1.6 inch 400x400 Round IPS TFT Module,350nits brightness, QSPI interface,is designed for toy, digital camera application, industrial equipment device and other electronic products which require high quality flat panel displays, excellent visual effect.

General Specifications

VXT016VCSA-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit . The 1.6¢¢ display area contains 400x400 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

LCD Parameter

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M
Viewing Direction	ALL	O’Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃

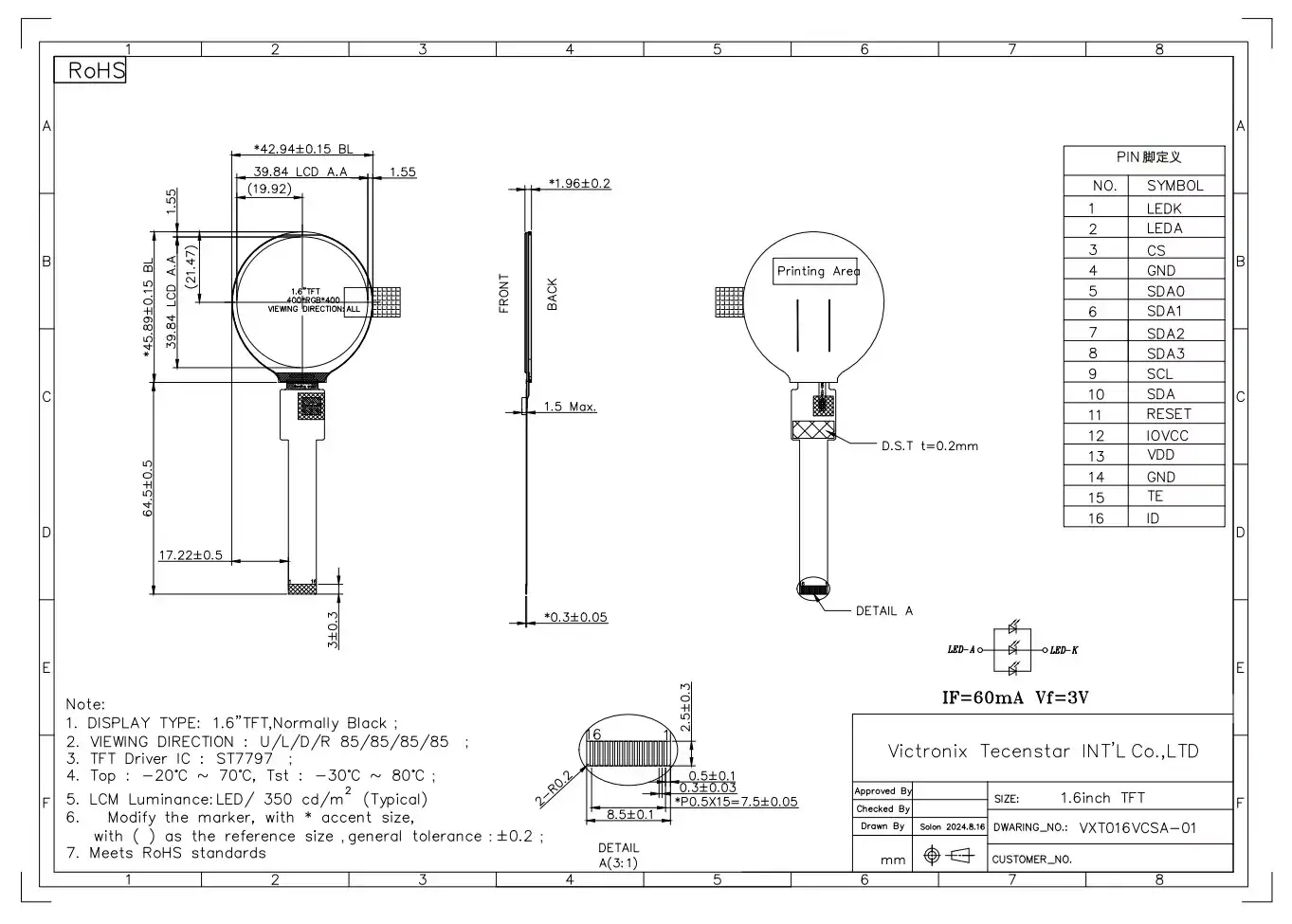

Module size	Refer to outline drawing	mm
Active Area(W×H)	39.84*39.84	mm
Number of Dots	400X400	dots
Driver IC	ST77903	-
Power Supply Voltage	3.3	V
Outline Dimensions	Refer to outline drawing	-
Backlight	1S3P-LEDs (white)	pcs
Interface	QSPI	-
