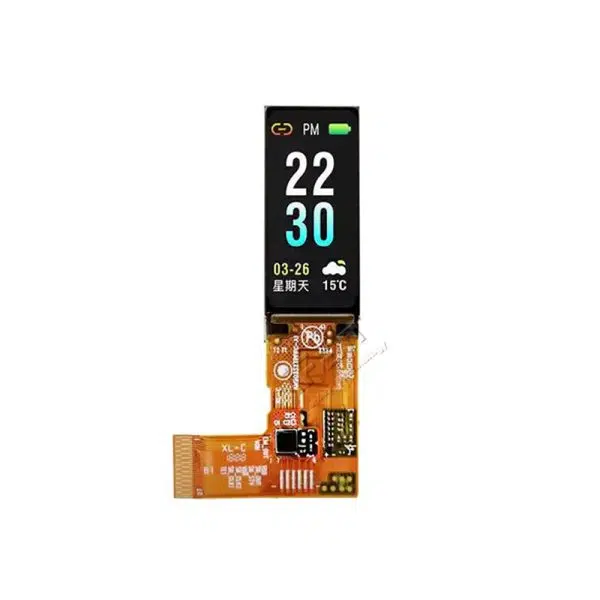

1,1 colio 126x294 Amoled

Šis „Victronix“ 1,1 colio 126x294 AMOLED yra aukštos kokybės 1,1 colio AMOLED ekrano modulis, sukurtas naujos kartos išmaniosioms juostoms. Šis modulis, pasižymintis traškia 126 × 294 RGB skiriamąja geba (126 × 3 subpikseliai × 294) ir 16,7 milijono spalvų (24 bitų gylis), šis modulis suteikia stulbinančius vaizdus išskirtiniu aiškumu ir gyvybingumu. Kaip profesionalus „AMOLED“ modulių gamintojas ir tiekėjas Kinijoje, šis „Victronix 1.1inch AMOLED“ modulis griežtai atitinka ROHS aplinkos apsaugos standartus, kad užtikrintų aukštesnius taikymo rezultatus.

Modelis:VXO-011AMA-097

Siųsti užklausą PDF parsisiųsti

Prekės aprašymas

With the development of displays, there are many types of displays nowadays. In a competitive environment, what are the advantages of this Victronix 1.1 inch 126x294 AMOLED? At first, it features 420 cd/m² typical brightness (450 cd/m² max), 88° wide viewing angle, 110% NTSC color gamut, and 60,000:1 contrast ratio for readability in all lighting conditions. Secondly, it supports flexible 3-wire/4-wire SPI protocol and RM69310 driver IC for seamless integration. In addition, it has passed rigorous environmental tests (ESD, vibration, temperature cycling) for operation in temperatures from -20°C to 70°C. Most importantly, we offer a customizable service to meet the needs of our clients.

This Victronix 1.1inch AMOLED module is widely used in fitness trackers, smart bands, and compact IoT devices demanding rich visuals, energy efficiency, and durability.

GENERAL INFORMATION

Item	Contents	Unit
Display Mode	AMOLED	/
LTPS Glass Outline (W×H)	12.96×30.94	mm
Encapsulation Glass Outline (W×H)	12.96×30.94	mm
Active area (W×H)	10.962×25.578	mm
Number ofDots	126×3(RGB)×294	/
Diagonal Inch	1.09	inch
Pixel pitch (W×H)	87×87	um
Glass Thickness	0.2 (LTPS) 0.3105(Encap)	mm

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min	Max	Unit
Supply voltage (Display)	VCC	-0.3	5.5	V
	IOVCC	-0.3	5.5	V
	ELVDD	0.0	6.0	V
	ELVSS	-6.5	0.0	V
Supply voltage (TP)	TSP VCC	-0.5	6	V
Supply voltage (TP)	TSP IOVCC	-0.5	6	V
Operating temperature	Top	-20	70	0C
Storage temperature	TsT	-30	80	OC
Humidity	RH	一	90	%RH

Note: Absolute maximum ratings means the product can withstand short-term, NOT more than 120 hours. Ifthe product is a long time to withstand these conditions, the life time would be shorter.
